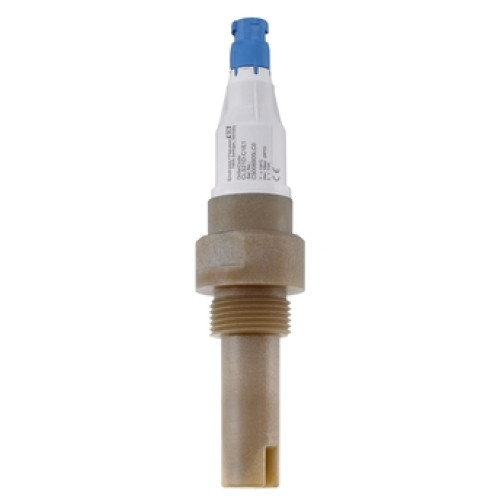

- Conductivity Condumax CLS21D
- ENDRESS HAUSER
- Application: Water, waste water, process, media separation, industrial water
- Characteristic: 2-electrode system for application in the middle application range
- Measuring range: k=1: 10 µS/cm to 20 mS/cm
- Measuring principle: Conductive conductivity cell with graphite electrodes for applications in the middle range
- Design: 2-electrode system with parallel arranged electrodes
- Material: Sensor shaft: PES
- Electrodes: graphite: Dimension Diameter: 24 mm (0.94 inch) Length: 61 mm (2.40 inch)
- Process temperature: -20 to 135 °C at 3.5 bar abs (-4 to 275 °F at 50 psi)
- Process pressure: 17 bar abs at 20 °C (246 psi at 68 °F)
- Temperature sensor: NTC 30K
- Ex certification: ATEX, NEPSI, EAC
- Connection: Process connection: DN25, DN40, G1, NPT 1
- Cable: Memosens connector CYK10
- Ingress protection: IP68 (connector)
-
