- کابل اندازه گیری اندرس هاوزر
- در طول های 5 متر و 10 متر

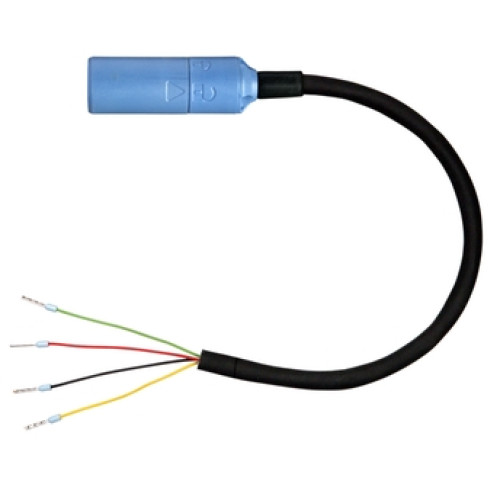

- Digital measuring cable CYK10
- Memosens data cable for all sensors with Memosens plug-in head
- Inductive plug- head for digital sensors with Memosens technology and wire terminals or M12 plug to connect to the transmitter
- Ex certification : ATEX II 1G Ex ia IIC T3/T4/T6 FM, CSA IS Cl.1 Div 1 Gr. A-D ATEX, NEPSI II 3G Ex ic IIC
- Ingress protection: IP68
- Measuring principle: Potentiometric
- Application: Measuring cable for contactless, inductive, digital transmission of measurement signals
- Installation: Inductive plug- head for digital sensors with Memosens technology and wire terminals or M12 plug to connect to the transmitter
- Characteristic: Inductive, digital transmission of measurement signals and energy
- Not influenced by moisture, EMC-fields and corrosion Measuring range
- High impedance cable not necessary: Design
- Easy to handle Bajonett coupling to connect digital sensors with Memosens technology and plug-head
- No open contacts, resistant against humidity
- Material: Cable sheath: TPE
- Junction box: aluminum: Dimension
- Diameter: 6.3 mm (0.25 inch)
- Cores: 2x2 cores, twisted pairs
- Length: up to approx. 100 m (328 ft)
- Process temperature: -25 to 135 °C (-13 to 277 °F)
- Process pressure: max. 50 bar/725 psi at 135°C/275°F.
- Temperature sensor: For digital sensors with inductive plug-head with and without temperature sensor
